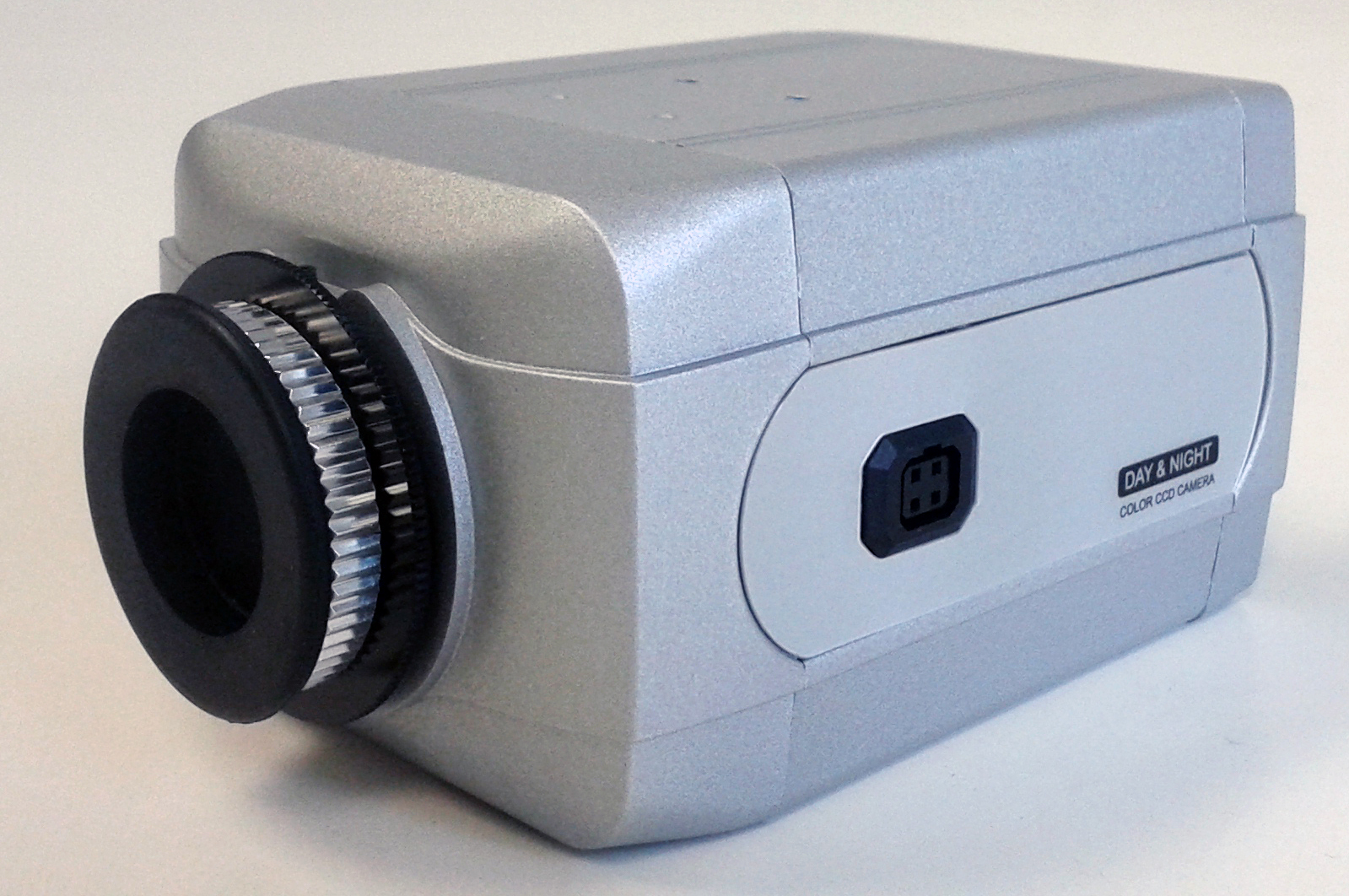

Standard Box Camera
Dual Voltage, 700 TV lines
- 1/3″ High Resolution CCD
- 700 TV Lines
- 0.000002 Lux in Sens-Up Mode
- On Screen Display
- Dual Voltage
- BLC
- AGC
- 2D-DNR
- Selectable Day & Night Mode
- Digital WDR
- Lens Not Included
- Made In Korea
Total Pixels: 811H x 508V (NTSC), 795H x 596V (PAL)
Effective Pixels: 768H x 494V (NTSC), 752H x 582V (PAL)
Sensor: 1/3” High Resolution CCD
Scanning System: 2:1 Interlace
Frequency: 15.734KHz x 59.94Hz (NTSC), 15.625KHz x 50.00KHz (PAL)
Resolution: 700 TV Lines
Video Out: 1.0Vp-p composite signal (75 ohm)
S/N (Y Signal): 52dB or more (AGC off)
Min. Illumination: 0.000002 Lux, Sens-up mode
Gain Control: Off / Low / Middle / High
White Balance: ATW1 / ATW2 / AWC / >> Set / Anti. CRL / Manual
Electronic Shutter Speed: NTSC: 1/60sec ~1/100,000sec, PAL: 1/50sec ~1/100,000sec
BLC: Off, BLC, HLC Selectable
2D-DNR: On (0~15) /Off Selectable
Day & Night Selection: Auto/Color/B&W/EXT
D-WDR: Off / low level (0~15) / high level (0~15)
Dead Pixel (DPC): Selectable
IR Smart: On/Off Selectable (IR Gain Level Adjustable 0~255)
Motion Detection: Off/On (4 Areas Selectable)
Privacy Masking: Off/On (8 Masks Selectable)
Lens Shading (LSC): On/Off Selectable (Level Adjustable 0~255)
Sharpness: On/Off (Level Adjustable 1~31)
OSD: Available
Lens Mount: C/CS Mount
Operating Temperature: -10 ~ +50°C / 0~80% RH
Power Supply: DC 12V / AC 24V 150mA
Dimensions: 65W x 52H x 108D mm
Weight: Appx. 350g
*Above specifications and appearance of product subject to change without notification
