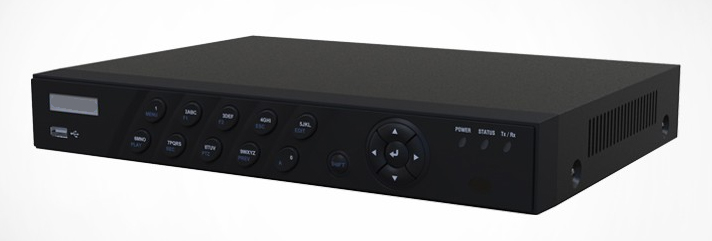

4 Channel 960H DVR
Real-Time Recording in 960H Resolution (960 x 480), HDMI Output up to 1920 x 1080P Resolution
- H.264 dual stream video compression
- HDMI output up to 1920 x 1080P resolution
- Real-time recording in 906H resolution
- Audio input (1)
- Adjustable video bit rates
- Mobile access via iVMS-4500
Video
Compression: H.264
Input: 4
Output: HDMI / VGA | 1-ch, resolution: 1920 × 1080P / 60 Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
CVBS | 1-ch, BNC (1.0 Vp-p, 75 Ω),resolution: PAL: 704 × 576, NTSC: 704 × 480
Interface: BNC (1.0 Vp-p, 75Ω), PAL/NTSC self-adaptive
Mode: NTSC or PAL
Audio
Compression: G711u
Input: 1ch, RCA (2.0 Vp-p, 1kΩ)
Output: 1ch, RCA (Linear, 1kΩ)
Bit Rate: 64Kbps
HDD: 1 port, up to 4TB
Recording
Resolution: WD1(960H) / 4CIF / 2CIF / CIF / QCIF
Frame Rate: 25fps(PAL) / 30fps(NTSC) per channel
Bit Rate: 32 Kbps ~ 3072 Kbps, or user defined (Max. 3072 Kbps)
Network
Dual Stream: Sub steam @ CIF / QCIF
Stream Type: Video, video & audio
Interface: RJ45 10M/100M ethernet
Function: IPv6, TCP/IP protocol, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, UPnP™, NFS, iSCSI, TCP, UDP and RTP for unicast
Playback
Playback Channel: 4
Auxiliary
Serial Interface: 1 RS-485, half duplex
USB Interface: 2 USB 2.0
Control: IR remote controller, USB mouse
General
Power Supply: 12V DC
Power Consumption: ≤10W
Working Temperature: -10ºC ~ +55ºc
Working Humidity: 10% ~ 90%
Chassis: Stand-alone 1U
Dimensions W x D x H: 315 x 230 x 45(mm)
Weight: ≤2Kg without HDD
*Above specifications and appearance of the product subject to change without notification
