Main Processor: High performance embedded microprocessor / HI 3520
System Resources:: Pentaplex function: live, recording, playback, backup & remote
access
Control Mode: Front panel, USB mouse, IR remote control, Network
Video Input: 24 channel, BNC
Video Output: 2TV BNC(1.0vp-p,75 ohm), 1 VGA, 1 HDMI
Audio Input: 8 channel, RCA
Audio Output: 1 channel, RCA(200-3000mV,5k ohm)
Display Split: 1/4/8/9/16/24
Display Resolution: 1600 x 1200,1360 x 768,1440 x 900, 1360 x 768, 1280 x 1024,
1024 x 768, 800 x 600
Tour Display: Yes
Privacy Masking: 4 self-defined four-sided zones for privacy masking for each camera
OSD: Camera title, time, video loss, camera block, motion detection, recording
Recording Image Resolution: D1 (704 x 576 / 704 x 480) / CIF (352 x 288 / 352 x 240) /
QCIF (176 x 144 / 176 x 120)
Encoding Speed::
Main Stream: Ch1~Ch24 CIF (1-25/30FPS)
Extra Stream: QCIF(1-25/30FPS), CIF(1-25/30FPS)
lmage Quality: 1-6 level(level 6 is the best, VBR effectively)
Recording Interval:: 1-120 min(default:60 min), Pre-record:1-30 sec,
Post-record:10-300 sec.
Playback Channel: 1~16 Simultaneity
Search Mode: Time/Date, Alarm, Motion Detection & Exact search(accurate to second)
Playback Speed: CIF 400/480 FPS
Backup Mode: Flash drive/USB HDD/USB CD/DVR-RW/Network download
Alarm Input/Output: 8 channel/ 1 channel
Network Functions: TCP/IP, UDP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Email, Alarm
Server, ARSP
Remote Operation: Monitor, PTZ control, Playback, System setting, File download, Log
information
HDD Ports: 2 SATA port, Max 4TB HDD supported
File Size:: Audio: 28.8MB/H, Video: 56-400MB/H
USB lnterface: 2 ports, 1 for mouse control, 1 for backup
PTZ control: RS485

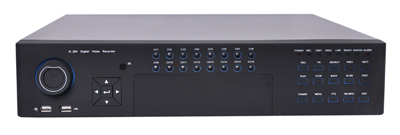

Dimension: 2U, 20.4 x 19.6 x 7.2 inch
Weight: 19.1 LBS (without HDD)
*Above specifications and design subject to change without notification
