Portable Wireless Megapixel Camera Set
90 Second Setup, 2.4Ghz & 5.8Ghz Wireless, 5 Megapixel, Internal Battery
& Smart Multi-Power System
The portable wireless 5.0 megapixel outdoor camera kit is able to be deployed in minutes, read license plates, perform forensic zooming, and continue to identify threats/targets from hundreds of yards away. The portable megapixel camera comes with a quick release tripod mount that allows for easy setup with no tools necessary. We also included a high-wind tie down kit with connection points integrated into the camera mount, cam buckle straps, spiral ground stakes (for silent anchoring) and carry bag. This Rapid Deployment Kit (RDK) Portable Wireless Outdoor 5 Megapixel Camera Kit will provide an instant surveillance perimeter for you and your team. This portable RDK can be wirelessly monitored/recorded using our V4-Pro Portable Surveillance System or used in "Stand Alone" Mode allowing multiple users to view the portable 5 mega-pixel camera using a laptop, PDA, or in-vehicle computer.
Download Brochure
_________________________________________________________
Software Specification
Provides a cost-effective solution for instant deployment of PTZ surveillance systems.
Includes a bundled 16-CH recording software for standalone applications.
Real-time MPEG-4 and MJPEG Compression (Dual Codec)
Up to D1 Resolution Dual Streams Simultaneously
3GPP Mobile Surveillance
Two-way Audio via SIP Protocol
Digital I/O for External Sensor and Alarm
Privacy Masks
Simultaneous dual streams
MPEG-4 streaming over UDP, TCP, HTTP or HTTPS
MPEG-4 multicast streaming MJPEG streaming over HTTP or HTTPS
Video Compression: MJPEG & MPEG-4
MPEG-4: Up to 30/25 fps at 352x240 (NTSC) / 352x288 (PAL)
MJPEG: Up to 30/25 fps at 352x240 (NTSC) / 352x288 PAL)
GSM-AMR speech encoding, bit rate: 4.75 kbps to 12.2 kbps
MPEG-4 AAC audio encoding, bit rate: 16 kbps to 128 kbps
Line level input: Up to1 Vrms
Supports two-way audio via SIP protocolGeneral I/O
Supports audio mute
IPv4, TCP/IP, HTTP, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS and PPPoE
Alarm and Event Management Triple-window video motion detection
One D/I and one D/O for external sensor and alarm
Event notification using HTTP, SMTP, or FTP
Multi-level user access with password protection
IP address filtering
Users 10 clients on-line monitoring at the same time
Wirless 5 Megapixel Camera
Hardware Specification
15 times the resolution of CCTV-2650 x 1920 @ 12fps (max), 0.3 lux(F1.4)
Forensic Zooming live or event playback
Region of Interest viewing (ROI)
1/2" CMOS Sensor
Over 80 billion operations per second
Image cropping
Motion Detection
Pre-installed in an outdoor housing with megapixel lens
Weather resistant-IP63 raiting
External connection: antenna type-N female, 120/230 Vac input
Locking mechanism: 7 heave-duty latching clasp seal the case tightly shut, 2 attached reinforced inserts for mechanical locks

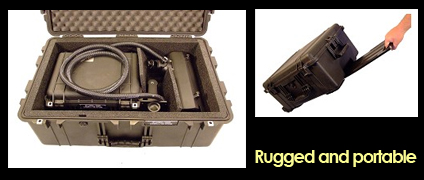

Transportation: retractable tote handle, 4 heavy-duty castors and 3 heavy-duty side handles make transporting very easy

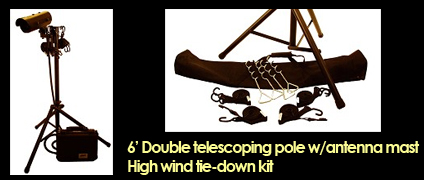

Tripod mount: 6' double telescoping pole (includes tie-down kit for high wind conditions)
Wireless radio: 600mw RF output power for greater range, 2.4GHz & 5.8GHz wireless 128/256 bit encription includes internal 13dbi directional antenna with color-coded signal strength LED lights (modes: Client, AP, Repeater)
AC power input: accepts 115/230 Vac (automatic switching)
Operating temperature: 0'f ~ 125'f
Transport case overall dimensions: 30.5L x 18.5W x 11.5H inch
Weight: 69 lbs (including camera, transmitter, tripod, transport case, tie-down kit, and internal batteries)
Important: Do not attempt to rewire or reprogram this wireless PTZ equipment without consulting our support representative first. Extra care has been taken to ensure this camera system operates as efficiently as possible at the highest quality possible. Range and performance can be increased with several different methods including the use of direction antennas. Please contact us for the recommended solutions.
|
![]()
|
