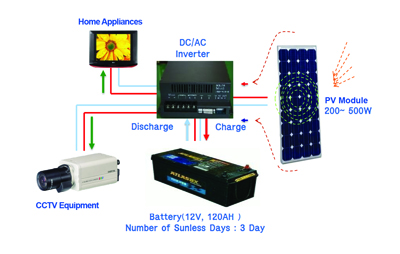

Portable Solar Power Generation System
power up home appliances as well as CCTV equipment
portability: the whole set can be transported in a car
no carbon dioxide emission
inverter: overload protection, battery charge level indicator, overload on/off buzzer alarm, low/over voltage protection
all-in-one inverter and controller with built-in nominal analog inverter
Download Brochure
_________________________________________________________
PV Module Specification
PV module power : 200~500Wp
Power usage per day :4~7 Hour
To calculate needed power Efficiency: needed power wattage x 0.75 (example: if you need 200W, 120 x 0.75 = 150WP
Recommended capacity: 2x needed wattage
Power consumption per day:
(200w x 4h = 800w) ~ (500w x 7h = 3500w)
Inverter Specification
Modified Sine wave
Charge/ discharge function
Output power: max 500W~1000W
Continuous: 24A /40A
Output: 110V ~220V
Load Reconnect: 12.5V
Charge Termination 32V<
Load Disconnect 10.5V
Temp. Compensation -30mV/’C
Self-consumption 9mA
Operating Temp. -40 to 50’C
Battery Specification
Nominal Voltage: 12V
Capacity (10HR, 25’C): 120 Ah
Dimension: 409mm (16.1inch) L x 176mm (7 inch) W x 225mm (8.9 inch) H
Approx. Weight: 37.5kg (82.7lbs)
Internal resistance (Fully charged, 25’C): Approx.4m•capacity affected by temperature (10HR): 40’C - 102%, 25’C - 100%, 0’C - 85%, 15’C - 65%
Self-discharge (25’C) remaining capacity: 3 month - 91%, 6 month - 82%, 12 month - 65%
Nominal operating temperature 25’C?’C (77’F?’F)
Operating temperature range: -15~50’C (5~122’F)
Float charging voltage(25’C): 13.50 to 13.80V
Cyclic charging voltage(25’C): 14.50 to 14.90V
Maximum charging current: 36A
Terminal material: Copper
Maximum discharge current: 960A(5 sec.)
*The specifications are subject to change withouth notice
_________________________________________________________
Available Models:
GM-200W (PV capacity: 200W, inverter: 24V/500W, controller: 12V/20A, batteries: 12V/120AH)
GM-300W (PV capacity: 300W, inverter: 24V/700W, controller: 12V/20A, batteries: 12V/120AH x 2)
GM-400W (PV capacity: 400W, inverter: 24V/700W, controller: 12V/30A, batteries: 24V/120AH x 2)
GM-500W (PV capacity: 500W, inverter: 24V/1000W, controller: 12V/30A, batteries: 24V/120AH x 4)
|
![]()
|
