Portable Wireless PTZ Camera Set
90 Second Setup, 2.4/5.8 Ghz Wireless, 35x Day & Night, Internal Battery & Smart Multi-Power System
Deployed within minutes (no wires to connect, just turn it on), this rapid deployment Portable PTZ Camera and dozens more like it will create and instant surveillance perimeter, virtual fence of PTZ cameras that can be wirelessly monitored using our Portable DVR System or operate the portable outdoor PTZ camera in "Stand Alone" mode (allowing multiple users to control the portable PTZ camera using a laptop, PDA or in-vehicle computer). The portable wireless PTZ camera can be tripod-mounted (or other structure) and operates on both 2.4Ghz & 5.8Ghz for the longest distance. Designed for quick or long term deployment on electric or battery power, the Portable PTZ camera has a powerful 35x optical zoom and night time optics that are capable of reading license plates and identifying targets from hundreds of yards away. Within seconds of receiving power, the Portable wireless PTZ camera automatically begins transmitting security video feeds to you.
Download Brochure
_________________________________________________________
Software Specification
Provides a cost-effective solution for instant deployment of PTZ surveillance systems.
Includes a bundled 16-CH recording software for standalone applications.
Real-time MPEG-4 and MJPEG Compression (Dual Codec)
Up to D1 Resolution Dual Streams Simultaneously
3GPP Mobile Surveillance
Two-way Audio via SIP Protocol
Digital I/O for External Sensor and Alarm
Privacy Masks
Simultaneous dual streams
MPEG-4 streaming over UDP, TCP, HTTP or HTTPS
MPEG-4 multicast streaming MJPEG streaming over HTTP or HTTPS
Video Compression: MJPEG & MPEG-4
MPEG-4: Up to 30/25 fps at 352x240 (NTSC) / 352x288 (PAL)
MJPEG: Up to 30/25 fps at 352x240 (NTSC) / 352x288 PAL)
GSM-AMR speech encoding, bit rate: 4.75 kbps to 12.2 kbps
MPEG-4 AAC audio encoding, bit rate: 16 kbps to 128 kbps
Line level input: Up to1 Vrms
Supports two-way audio via SIP protocolGeneral I/O
Supports audio mute
IPv4, TCP/IP, HTTP, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS and PPPoE
Alarm and Event Management Triple-window video motion detection
One D/I and one D/O for external sensor and alarm
Event notification using HTTP, SMTP, or FTP
Multi-level user access with password protection
IP address filtering
Users 10 clients on-line monitoring at the same time
Wirless PTZ Hardware Specification
35x Optical Zoom, 570 lines/res Sony Progressive Scan CCD, Fast and precise pan/tilt mechanics, Wide Dynamic Range (WDR), Electronic Image Stabilizer (EIS), Area zoom

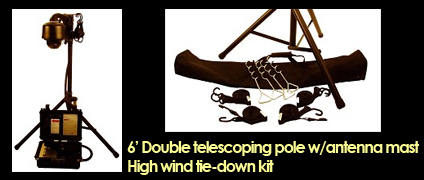

6' double telescoping pole w/ antenna mast
Sony Double Density interline Progressive CCD
35x AF Optical Zoom (Total 444X Zoom)
Horizontal Resolution more than 550TV Lines (Color) 680 Lines (B/W)
Day & Night (ICR), Great Low illumination with DSS, 0.00005 Lux
SSNR (Noise Reduction at Low Light)
Wide Dynamic Range(126X)
Smart Zoom (Speed control by Zoom ratio)
250 Programmable Preset Positions
Swing, Group, Trace, Spiral, Auto Flip, Alarm
16 Privacy Masking Zones
DIS (Digital Image Stabilizer) - Protecting from shaking,
Motion Detection, Weather-proof(IP66)
Suits for Factory, Military Base, Outside, Building etc.
External Connections - Antenna Type -N Female, 120/230Vac Input
Cooling - 2 Cooling fans with weather resistant exhaust covers allow the system to operate in closed (lid down) position.
Locking Mechanism - 7 Heavy-Duty latching clasp seal the case tightly shut. There are 2 attached reinforced inserts for mechanical locks.
Transportation - Retractable tote handle, 4 Heavy-duty castors and 3 heavy-duty side handles make transporting this unit very easy.
Unobstructed TX Range - depends on equipped transmitter - option for Analog or Encrypted Digital IP Communications (Different transmitters will be quoted for different projects)
Effective TX Range - depends on transmitter power, antenna (directional or omni) and whether an a,plifier or repeater is present. (Different transmitters will be quoted for different projects)
Operating Temperature 0'f ~ 125'f / (high heat / rugged configurations available)
Dimension: 30.5"L x 18.5"W x 11.50"H
Weight 69lbs (including batteries) Packaged pre-installed & tested (turn-key)
Option to integrate client radio, mesh network radios or other communications equipment
Built-in 600mw RF output power for greater range, 2.4Ghz wireless 128/256bit Encryption includes 9dbi omni-directional antenna that mounts on the tripod. (modes: Client, AP, Repeater)
AC Power Input: 115/230Vac (auto switching)
Add-On Internal Battery Operating Time: approximately 12 hours (assumed average PTZ activity)
External battery input to extend operating time (when connected, internal battery acts as backup)
Electric Operating Time: with electric power supplied the system can operate indefinitely
operating on 120Vac, w/o fan, .26amp - 31watts
operating on 120Vac, w/ fan, .29amp - 36watts
Important: Do not attempt to rewire or reprogram this wireless PTZ equipment without consulting our support representative first. Extra care has been taken to ensure this camera system operates as efficiently as possible at the highest quality possible. Range and performance can be increased with several different methods including the use of direction antennas. Please contact us for the recommended solutions.
|
![]()
|
