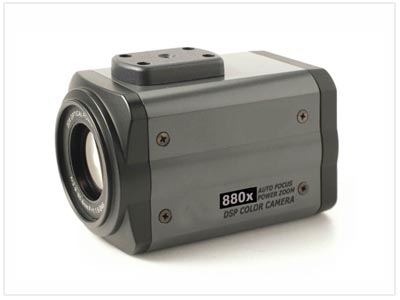

880x Zoom Camera
- 480 TV Lines
- 22x Optical Zoom
- 40x Digital Zoom
- High Resolution Sony 1/4″ Super HAD CCD
- 64 Presets
- Auto Focus
- Supports RS-232C, RS232TTL, and RS485 Communication
- On-Screen-Display Setting
- Pelco D Protocol
- Made In Korea
Image Sensor: Interline 1/4" Sony Super HAD CCD
Total Pixels: 811H x 508V
Effective Pixels: 768H x 494V
Horizontal Resolution: More than 480 TV Lines
Lens: 22x Zoom Lens (f=3.9~85.8mm) F1.6(Wide)~F3.7(Tele)
Minimum Shooting Distance: 0.01m(Wide) / 1m(Tele)
Zoom: 22x Optical, 40x Digital
Scanning Frequency: 15.734(H), 59.944(V)KHz
Scanning System: 2:1 Interlace
Min. Illumination: 1.0 Lux / 30 IRE
Electronic Shutter: 1/60~1/10,000 Sec.
Video Focus: Auto/Manual (Near-Far)
OSD: On/Off (Function OSD, Sub-Key OSD, Menu OSD)
Camera Control: RS-232C, RS-485, Controller, A/D Key
Position Preset: 64
Camera ID: On/Off
S/N Ratio: More than 48dB
Video Output: 1.0 Vp-p, Composite 75 Ohm
Protocol: Default / Pelco-D
Sync. System: Internal
Dimensions: 2.6W x 2.6H x 4.4L Inch
Operating Temperature: -10°C to 50°C
Storage Temperature: -20°C to 60°C
Weight: 0.8 lbs (approx)
Power Consumption: 230mA
Power Supply: DC 12V ?0% / Max 4.2W / 350mA
*Above specifications and design subject to change without notification
