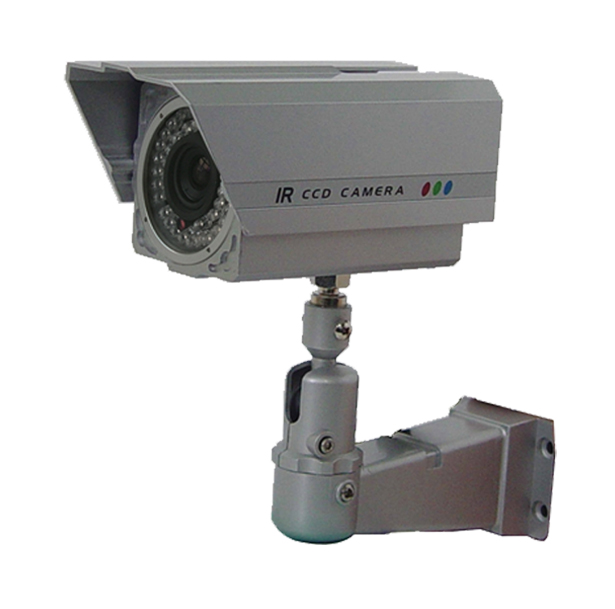

Varifocal IR Bullet Camera
1/3″ Sony Super HAD CCD, 420 TV Lines, 4~9mm Lens
- 1/3″ Sony Super HAD CCD
- 45pcs of 850nm IR LED Lamps
- 4~9mm Varifocal Auto Iris Lens
- External Focal Length Adjustment
- DC Iris Volume Level Adjustment
- 420 TV Lines
- Made in Korea
TV System: NTSC
Scanning System: 525 lines 2:1 interlace
Scanning Frequency: H: 15.734Hz / V: 59.94Hz
Total Pixels: 811(H) x 508(V)
Effective Pixels: 768(H) x 494(V), 380K
Horizontal Resolution: 420(H) TV lines
Pick-Up Device: 1/3" Sony Super HAD CCD
Electronic Shutter: 1/60 ~ 100,000
Minimum Illumination: 0.1 Lux (0.00 Lux with CDs sensor on)
S/N Ratio: More than 45dB
White Balance: Automatic
Gamma Correction: 0.45
Video Out: VBS 1.0Vp-p composite 75 ohm
Sync System: Internal
Lens: DC Auto Iris Varifocal Lens (4mm~9mm)
Power Supply: DC 12V
Dimensions: 3.2 (diameter) x 6 (L) inch
Weight: 3.5 lbs
*Above specifications and design subject to change without notification
