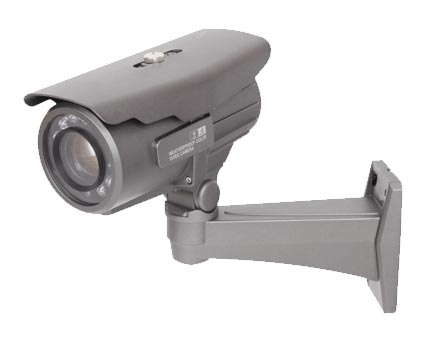

Long Distance IR Bullet Camera
1/3″ Sony Super HAD CCD, 600 TV Lines, 5~50mm Varifocal Lens, 250ft IR Range
- 600 TV Lines
- OSD (DNR, DSS, HSBLC)
- 128x Sens-Up Mode
- Motion Detection & Privacy Masking
- Rotate/Mirror/V-Flip Digital Effects
- 8x Digital Zoom
- True Day & Night
- Dual Voltage
- Made in Korea
Total Pixels: NTSC=811(H) * 508(V) / PAL=795(H) * 595(V)
Effective Pixels: NTSC=768(H) * 494(V) / PAL=752(H) * 582(V)
Sensor: 1/3" Interline Transfer CCD
Scanning System: 2:1 Interlace
Frequency: Horizontal: 15.734Khz, Vertical: 59.94hz
Resolution: 600 TV Lines
Backlight: BLC / HSBLC / Off Selectable
Video Output: 1.0Vp-p Composite Signal (75 Ohm)
S/N (Y Signal): 52dB (AGC Off, Weight On)
Minimum Illumination: 0.2Lux / 0.0002 Lux (Sens-Up Auto)
Sens-Up: Off / Auto(Selectable limit *2 ~ *128)
Gain Control: High, Middle, Low, Off Selectable
White Balance: ATW / AWC / Manual (1700K~11000K)
Electronic Shutter Speed: 512~1/90,000x
OSD: Available
3D-DNR: Off / Low / Middle / High
Sharpness: Adjustable
Day & Night: True Day & Night (Auto / Day / Night / Ext. D&N)
EIS: On / Off
Privacy Masking: 8 Zones
Digital Zoom: 8x
Digital Effect: Off / V-Flip / Mirror / Rotate
IR Range: 250 FT
Lens Mount: 5~50mm Varifocal DC Auto Iris Lens
Power Supply: DC 12V 160mA / AC 24V 90mA (CDS On: 400mA Max)
Operating Temp/Humidity: 10~+50 Deg C / 0~80% RH
Operating Temp.: 10~+50 Deg C.RH 95% Max.
Storage Temp.: -20~+60 Deg C.RH 95% Max.
Dimension: 3.8?x 7.2L Inch
Weight: 2.9 LBS
*Above specifications and design subject to change without notification
