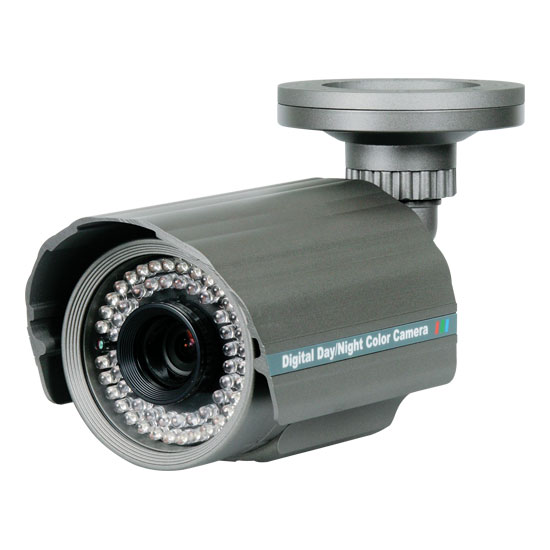

Varifocal IR Bullet Camera
560 TV Lines, 3.5~16mm Lens, 180ft IR Range, 560 TV lines, IP66
- Mechanical Day & Night
- 560 TV Lines
- 3.5~16mm Varifocal DC Auto Iris Lens
- Built-In 56 Infrared LED
- OSD Setup
- IP66
- 180ft IR Range
- Cable-Through Mounting Bracket
- Dual Voltage
- Made in Korea
Image Pick-Up Device: 1/3" Sony Super HAD CCD
TV System: NTSC, PAL
Total Pixels: 811 x 508 (NTSC), 795 x 596 (PAL)
Effective Pixels: 768 x 494 (NTSC), 752 x 582 (PAL)
Scanning Frequency:
NTSC: 15.734KHz(H) / 59.4Hz(V), PAL: 15.625KHz(H) / 50.0Hz(V)
Scanning System: 2:1 Interlace
Synchronization: Internal
Resolution: 560 TV Lines
Minimum Illumination:
CDS Off: 0.1 Lux, CDS On: 0.00006 Lux
IR Range:
Indoor: 180ft, Outdoor: 120ft
S/N Ratio: More than 50dB
White Balance: ATW/AWBC/Manual(1800"K~10500"K)
Gamma Characteristic: Internal / Line Lock Selectable
Video Output: CVBS: 1.0Vp-p, 75?
Electronic Shutter Speed:
NTSC: Auto/Manual (1/60~1/120,000 sec)
PAL: Auto/Manual (1/50~1/120,000 sec)
OSD: Built-In
BLC: Low, Middle, High, Off Selectable
AGC: Low, Middle, High, Off Selectable
DNR: Low, Middle, High, Off Selectable
Day & Night (Color): On/Auto Selectable (Electrical)
Sharpness: On/Off (Level Adjustable)
Privacy: On/Off (4 Progammable Zones)
Power Supply: DC 12V / AC 24V, Dual Voltage
Power Consumption: CDS On: 600mA Max
Lens DC Auto Iris Varifocal Lens (3.5~16mm)
Operating Temperature: -10°C ~ 50°C RH 95% MAX
Storage Temprature: -20°C ~ 60°C RH 95% MAX
Dimensions: 3.9W x 5.4H x 10L Inch
Weight: 3.4 LBS
*Above specifications and design subject to change without notification
