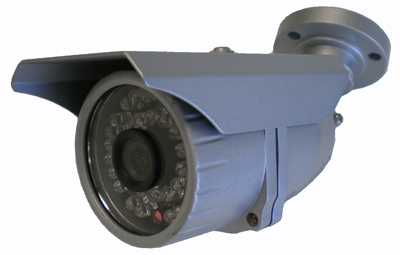

Outdoor IR Bullet Camera
IP66
- 1/3″ Sony super HAD CCD
- 480 TV Lines
- 3.6mm lens
- Infra-red night vision, 60 feet range
- Cable-through bracket
- BNC connector plugs into any DVR, VCR, TV or security monitor.
- Silver Color
Image Sensor: COLOR 1/3" SONY CCD
Effective Pixel:
NTSC:768(H) x 494(V)
Horizontal Resolution: 480TV Lines
Sync System: Internal
Scanning System: Interlace 2:1
Electronic Shutter: NTSC:1/60s~ 1/100,000s PAL:1/50s~ 1/100,000s
Gamma: 0.45
S/N Ratio: 48dB or more
Lens: Fixed 3.6mm
IR LEDs: 24pcs
IR Wavelength: 850nm
IR Distance: 60FT
Video Output: 1.0Vp to p75 ohm, BNC connection
Usable Illumination: 0 lux(When IR LEDs on)
Waterproof level: IP66
AGC: Auto
BLC: Auto
White Balance: Auto
Power Supply: DC12V/500mA
Power Consumption: 6W or less (When IR LEDs on)
Operating Temperature: -10 ~ 50C
Dimension: 169 x 70 x 82mm
Weight: 340g(with bracket)
*Above specifications and design subject to change without notification
