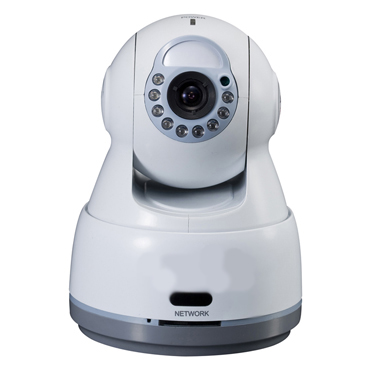

1/4” CMOS VGA Pan/Tilt Network Camera
25/30fps at VGA, ICR D&N, IR LED, Built-in Pan/Tilt driver
- 1/4“ CMOS image sensor
- High-performance TI DaVinci series DSP
- H.264 video compression and JPEG image capture
- 25/30fps at VGA/CIF/QVGA/QCIF/QQVGA resolution
- Dual encoding streams supported
- Support ICR true Day/Night
- 2 /1channel alarm IN/OUT(I/O Port cable Extension)
- Built-in Pan/Tilt driver, support 3D intelligent positioning
- Built-in high performance IR LEDs(7~10 meters)
- Built-in 1 channel PIR sensor
- Max 32GB Hot-swappable SD card for local storage
- Built-in Web server, NVR, CMS(PSS/DSS) & DMSS
General
Processor: TI DaVinci Series DSP
Operating System: Embedded LINUX
Resource: Simultaneous remote monitoring, local recording and remote control
User Interface: WEB, CMS(DSS/ PSS), DMSS, NVR
Camera
Image Sensor: 1/4” CMOS
Effective Pixels: 640(H)×480(V)
Electronic Shutter: Auto/Manual, 1/50~1/10000s
Mini. Illumination: 0.5 LUX/F1.8, 0 LUX/F1.8(IR ON)
Signal Noise Ratio: >50dB
Gain Control: Auto
White Balance: Auto
Day/Night: ICR
Video Format: PAL/NTSC
Lens: M12-mount , Fixed focal lens, 4.3mm, F1.8
Pan/Tilt: Horizontal: ±150°, Vertical: -30°~90°
Video
Video Compression: H.264
Image Resolution: VGA(640×480) / CIF(352×288/352×240) / QVGA(320×240) / QCIF(176×144/176×128) / QQVGA(160×120)
Encoding Speed::
Main Stream: VGA/CIF/QVGA/QCIF/QQVGA (1~25/30fps)
Extra Stream: VGA/CIF/QVGA/ QCIF/QQVGA(1~25/30fps)
Bit Rate: 32K~3Mbps
Snapshot: Fastest 1fps JPEG capture
Video Format: NTSC
Audio
Audio Compression: PCM(64Kbps) / G.711a(32Kbps)
Input: 1 channel 3.5mm Jack Mic in
Output: 1 channel 3.5mm Jack Speaker out
Network
Ethernet: RJ-45 (10/100Base-T)
Network Functions: HTTP, TCP/IP, ICMP, RTSP, RTP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, , Alarm Server
Remote Operation: Monitor, PTZ control, Playback, System setting, File download, Log information, Maintenance & Upgrade
Auxiliary Interface
SD Card: Max 32GB, local storage
Alarm I/O: 2/1 alarm in/out
PIR: I PIR sensor
Environmental
Power Supply: DC 5V
Power Consumption: < 3W
IR LED: 7~10 meters
Operating Environment: -10°C ~ +50°C, 10% ~ 90%
Dimension: 106mm × 102mm × 138mm
Weight: 340g
Mount: Desktop or Wall
*Above specifications and design subject to change without notification
