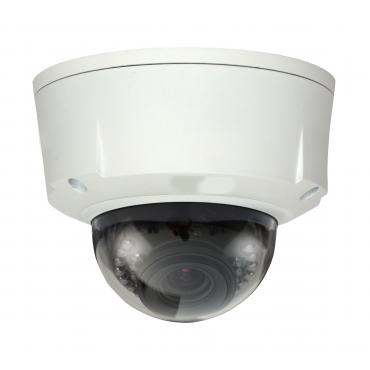

2 Megapixel Full HD Vandal-proof IP IR Dome Camera
- 1/3” 2Megapixel progressive scan Exmor CMOS
- H.264 & MJPEG dual-stream encoding
- 25/30fps@1080P(1920×1080)
- DWDR, Day/Night(ICR), 2DNR, Auto iris, AWB, AGC, BLC
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
- 3.3~12mm varifocal lens (3200)
- Built-in 2/1 alarm in/out
- Max. IR LEDs length 20m
- Micro SD memory, IP66, IK10, PoE
Camera
Image Sensor: 1/2.8” 2Megapixel PS Exmor CMOS
Effective Pixels: 1920(H)x1080(V)
Scanning System: Progressive
Electronic Shutter: Auto/Manual, 1/4~1/10000s
Mini. Illumination: Color: 0. 2Lux/F1.2, B/W: 0.01Lux/F1.2; 0Lux/F1.2(IR on)
Signal Noise Ratio: >50dB
Video Output 1 channel, BNC(1.0Vp-p/75Ω)
Features
Max. IR LEDs Length: 20m
Day/Night: Auto(ICR)/Color/B/W
Backlight Compensation: BLC / HLC / DWDR
White Balance: Auto
Gain Control: Auto/Manual
Noise Reduction: 2D
Privacy Masking: Up to 4 areas
Lens
Focal Length: 3.3~12mm
Max Aperture: F1/4
Focus Control: Manual
Angle of View: H:79.3°(Wide)~29.8°(Tele)
Lens Type: Manual / auto iris(DC)
Mount Type: Board-in Type
Video
Video Compression: H.264/MJPEG
Image Resolution: 1080P(1920×1080) / 720P(1280×720) / D1(704×480) / CIF(352×240)
Main Stream Frame Rate: 1080P/720P(1 ~ 25/30fps)
Sub Stream Frame Rate: D1/CIF(1 ~ 25/30fps)
Bit Rate:: H.264: 32K ~ 8192Kbps, MJPEG: 32K ~ 20480Kbps
Snapshot: Fastest 1fps JPEG capture
Audio
Audio Compression: G.711a / G.711u / PCM(128kbps)
Interface: 1/1 channel In/Out
Network
Ethernet: RJ-45 (10/100Base-T)
Network Protocol: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIF: Ver. 2.0
Max User Access: 10 users
Smartphone: iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot: Micro SD, Max 32GB
Alarm: 1 Input / 1 Output
General
Power Supply: DC12V/AC24V, PoE(802.3af)
Power Consumption: <10W
Operating Environment: -10°C ~ +60°C, 10% ~ 90%
Protection Level: IK10 & IP66
Dimension: Φ151mm×119mm
Weight: 1.25kg
*Above specifications and design subject to change without notification
