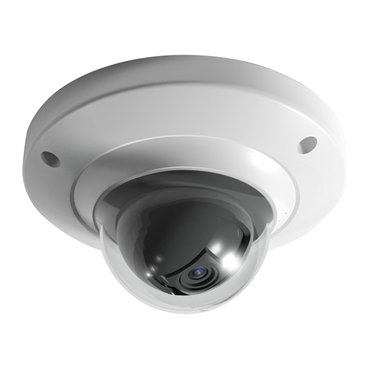

2 Megapixel Full HD Vandal-proof Network Mini Dome Camera
- 1/3” 2 Megapixel Aptina CMOS image sensor
- H.264 & MJPEG dual-stream encoding
- 25/30fps@1080P(1920×1080)
- DWDR, Day/Night, 2DNR, AWB, AGC, BLC
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
- 3.6mm fixed lens (2.8mm,6mm,8mm optional)
- Micro SD memory, IP66, IK10, PoE
Camera
Image Sensor: 1/3” 2 Megapixel Aptina CMOS
Effective Pixels: 1920(H)x1080(V)
Scanning System: Progressive
Electronic Shutter Speed: Auto/Manual 1/4~1/10000
Min. Illumination:: Color: 0. 2Lux/F1.6
B/W: 0.01Lux/F1.6
S/N Ratio: >50dB
Camera Features
Day/Night: Auto(Electronic) / Color / B/W
Backlight Compensation: BLC / HLC / DWDR
White Balance: Auto
Gain Control: Auto/Manual
Noise Reduction: 2D
Privacy Masking: Up to 4 areas
Lens
Focal Length: 3.6mm (2.8mm,6mm,8mm optional)
Max Aperture: F1.6(F.20/F1.6/F1.6)
Angle of View: H: 70°(114°/46°/35°)
Mount Type: Board-in Type
Video
Compression: H.264 / MJPEG
Resolution: 1080P(1920×1080) / 720P(1280×720) / D1(704×480) / CIF(352×240)
Frame Rate:: Main Stream: 1080P/720P(1 ~ 25/30fps)
Sub Stream: D1/CIF(1 ~ 25/30fps)
Bit Rate:: H.264: 32K ~ 8192Kbps
MJPEG: 32K ~ 20480Kbps
Network
Ethernet: RJ-45 (10/100Base-T)
Protocol: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIF: ONVIF Ver. 2.0
Max. User Access: 10 users
Smart Phone: iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot: Micro SD, Max 32GB
General
Power Supply: DC12V, PoE(802.3af)
Power Consumption: <2.5W
Working Environment: -10°C~+60°C, 10%~90%
Protection Level: IK10 & IP66
Dimensions: Φ110×54mm
Weight: 0.25kg
*Above specifications and design subject to change without notification
