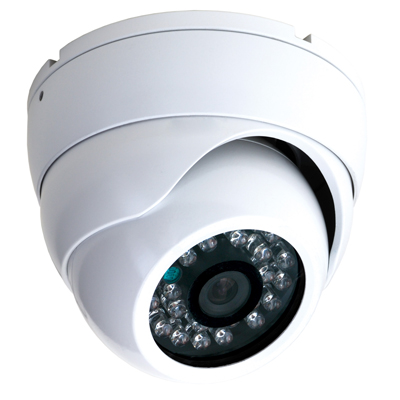

Outdoor IR Dome Camera
480 TV Lines
- 1/3″ Sony super HAD CCD
- Pixels: 510H x 492V
- 480 TV Lines
- 24 pieces of white LED
- 3.6mm board lens
- Aluminum housing
- White Color
- Available in Grey color as well (model name: VPD-IR024MG)
- IP55
Image Sensor: Color 1/3" SONY HAD CCD
Effective Pixels: NTSC: 768(H) x 494(V)
Horizontal Resolution: 480 TV Lines
Sync System: Internal
Scanning System:: Interlace 2:1
Lens: 3.6mm, fixed
IR LED: 24pcs * Φ5mm IR LED
IR Distance: 60ft
IR LED Auto ON/OFF: Day/Night
Usable Illumination: 0 lux (When IR LEDs on)
Electronic Shutter: 1/60 ~ 1/100,000s
S/N Ratio: ≥48dB
White Balance: Auto
BLC: Auto
AGC: Auto
Gamma Corrections: 0.45
Waterproof: IP55
Video Output: 1.0Vp to p75Ω , BNC connector
Camera Housing: Aluminum, White Color
Power Supply: DC12V
Operating Temperature: -10 to 50°C
*Above specifications and design subject to change without notification
