This product has been discontinued.

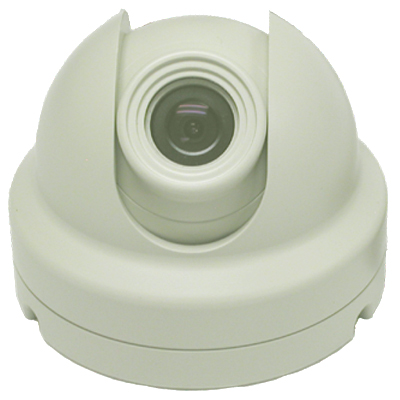

VPD-SWH

Outdoor Mini Dome Camera
620 TV Lines

  • 1/3″ Sony Super HAD CCD
  • Available with 4mm Lens
  • Outdoor Ready
  • 12V DC
  • Compact (2.8Φ x 2.2H Inch)
  • Made In Korea



Specifications

Image Sensor: 1/3" Sony Super HAD CCD
Signal System: NTSC
Effective Pixels: 780(H) x 494(V)
H. Resolution: 620 TV line
Min. Illumination: 0.1 Lux
Scanning System: 2:1 interlace
Sync System: Internal
Video Output: Composite 1.0Vp-p 75 Ohm
S/N Ratio: 46dB or more
Electronic Shutter: 1/60~100,000 sec
Gamma Correction: r=0.45
Lens: 4mm lens
Power Source: DC 12V
Power Consumption: 150mA
Preservation Temperature: -21°C~60°C RH 95% Max
Operating Temperature: -10°C~50°C, RH 95% Max
Dimensions: 2.8(Φ) x 2.2(H) inch

*Above specifications and design subject to change without notification
