3 Megapixel Mini IR IP Dome Camera 3.6mm Lens
- 1/3” 3 Megapixel progressive scan CMOS
- H.264 & MJPEG dual-stream encoding
- Max 20fps @3.0M(2048×1536) & 30fps @1080P(1920×1080)
- DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
- 3.6mm fixed Lens
- Max. IR LEDs length 98ft
- IP67, PoE
Camera
Image Sensor: 1/3” 3 Megapixel progressive scan CMOS
Effective Pixels: 2048(H)x1536(V)
Scanning System: Progressive
Electronic Shutter Speed: Auto/Manual, 1/3~1/10000s
Min. Illumination: 0.045 Lux/F2.1(Color), 0 Lux/F2.1(IR on)
S/N Ratio: More than 50dB
Camera Features
Max. IR LEDs Length: 98ft
Day/Night: Auto(ICR) / Color / B/W
Backlight Compensation: BLC / HLC / DWDR
White Balance: Auto / manual
Gain Control: Auto / Manual
Noise Reduction: 3D
Privacy Masking: Up to 4 areas
Lens
Focal Length: 3.6mm
Max Aperture: F2.1
Focus Control: Manual
Angle of View: Horizontal 81°
Lens Type: Fixed lens
Mount Type: Board-in Type
Video
Compression: H.264/ H.264H/ H.264B/ MJPEG
Resolution: 3.0M(2048×1536) / 1080P(1920×1080) / 720P(1280×720) / D1(704×480) / CIF(352×240)
Frame Rate:: Main Stream: 3M(1 ~ 20fps) / 1080P(1 ~ 30fps)
Sub Stream: D1(1 ~ 30fps)
Bit Rate:: H.264: 4kbps～8192bps
Corridor Mode: Support
Network
Ethernet: RJ-45 (10/100 Base-T)
Protocol: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS
Compatibility: ONVIF, CGI
Max. User Access: 20 users
Smart Phone: iPhone, iPad, Android, Windows Phone
General
Power Supply: DC12V, PoE(802.3af)
Power Consumption: <3.7W (IR on)
Working Environment: -30°C~+60°C, less than 95% RH
Ingress Protection: IP67

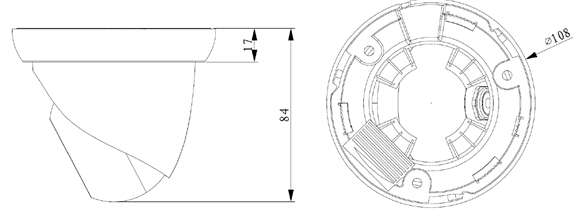

Dimensions: Φ4.3 × 3.3 inch
Weight: 0.6 lbs
*Above specifications and appearance of product subject to change without notice
