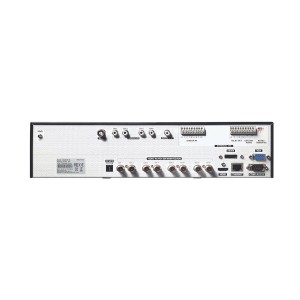

Webgate Hybrid (HD-SDI & analog) 8ch DoubleReach DVR
-
•8ch Standalone DVR supporting multi-video input
•Supports diverse video standards
•Digital : HD1080p, HD720p, DoubleReachTM
•Analog : Analog, 960H (NTSC/PAL)
•Built-in DoubleReachTM receiver function for all channels (Supports up to 400m HD video transmission without repeater)
•Up to 30fps(25fps) recording and playback per channel
•Adjustable recording quality and framerate per channel
•High-resolutions over 1200TVL at Live/Playback for HD1080p and DoubleReachTM video input
•Supports Dual Codec(H.264,JPEG) & Multi Stream
•HDMI, VGA, BNC video output
•HDMI & VGA : 1920 x 1080 video output
•BNC : CVBS. User-defined display & Alarm spot monitor support
•Various Live and Playback display (1/4/9 Split-screen)
•Robust IPFR (Intelligent Power Failure Recovery) DVR File System
•Max. 2 Internal SATA Type HDDs
•Max. 32TB(e-SATA) external storage interface
•Date/Time, Calendar/Time-line, Event, Thumbnail(Time Interval), Text Search available
•At-the-PC Playback of removed DVR HDD
•Lightning arresters on Video input, RS-485, DIO ports
•Provides bundle CMS program, managing Max. 1,024 DVRs in various ways such as E-map, Viewset
•Java Viewer for Chrome, Firefox, Safari

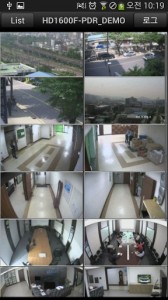

•Supports various mobile platform (iPhone/Android Viewer)
•Provides Full SDK for easy and powerful customization
Specifications
Video Input Video input format: HD-SDI (SMPTE 292M), DoubleReach™ CVBS, 960H Resolution / frame rate: HD1080p 1920x1080 / 25, 30 FPS | HD720p 1280x720 / 25, 30, 50, 60 FPS | DoubleReach: 1920x1080 / 25, 30FPS | 510H/760H: 720x480 / 60i or 720x576 / 50i | 960H 960x480 / 60i or 960x576 / 50i Connectors: 8ch, 75Ω BNC connector Video Output HDMI, VGA: 1, 4, 9 split-screen, 1920x1080, User defined sequence / Alarm pop-up BNC: 1, 4, 9 split-screen, CVBS Channel Switching / Alarm pop-up Recording Compression: H.264 / JPEG Resolution: 1920 x 1080, 1280 x 720, 720 x 480(576), 960 x 480(576) Rate: Max. 30fps(25fps) per channel Quality: 10 levels up to 12Mbps Mode: Manual & Event / Schedule & Event / Continuous & Event Schedule: 24hrs / 7days Playback Mode: Instant playback / search Speed: Max. 30fps(25fps) per channel Search type: Date/Time, Calendar/Time-line, Event, Thumbnail, Text Block playback: 24hours ~ 99days Event & alarm Event source: MD(Motion Detection), sensor, text, Video Loss Event check schedule: 24hrs / 7days Event action: Buzzer, Relay, E-mail, FTP, Alarm pop-up MD area: 15x10 Sensor input: Dry contact (NO or NC selectable) Text input: POS/ATM support, AVE VSI Pro/Hydra support System alarm Alarm source: HDD fail, HDD almost full, Fan fail, Password fail, WRS fail Alarm action: Warning message, Buzzer, E-mail, Relay Audio Input/output: 4ch RCA input / HDMI, RCA output Compression: ADPCM (32Kbps, 16KHz, 16bit sampleing) Direction: Both PTZ Protocols: 35 models including C1080, C1080PT-Z20, Pelco-D, Pelco-P, Samsung, Panasonic and others Network Interface: 1 Gigabit Ethernet (10/100/1000Mbps) Type: Static IP, Dynamic IP, xDSL DDNS: WNS, DynDNS, NoIP, WRS Bandwidth limit: Supported NTP: Server / Client / Both Users: 10 monitoring, 2 playback Streaming: H.264 stream, High resolution | 1 additional H.264 stream, Normal resolution | 1 JPEG stream, Normal resolution for e-mail or mobile Security User level: 1 admin, 10 users User privilege: Menu, PTZ, Relay, Playback, Power, Copy, Network MIC IP filtering: Supported Storage & Backup Storage devices: 2 internal SATA HDDs, 1 external eSATA Interface File system: Proprietary file system, data-loss protection against power-failure Capacity: Max. 32TB with eSATA Backup type: Multi-channel or Single channel avi file Backup device: USB drive (2 ports) S.M.A.R.T.: Temperature and Health checking Serial & I/O Serial port: 1 RS-232C, 2 RS-485 Sensor input: 8 Dry-contact Relay output: 2 Relay Controller Device: IR remote controller, Joystick Keyboard, Mouse Software Web viewer: Monitoring / Event / PTZ / Playback with IE Java viewer: Monitoring / Event/ PTZ with IE, Chrome, Safari Mobile viewer: Monitoring / PTZ / LogView / Playback with iPhone & Android CMS: Control Center, Max. 1024 DVRs SDK: ActiveX(COM) SDK Environmental & physical Dimension: 350(W) x 393(D) x 88(H) mm Weight: 8 Kg (No HDD) Operating temperature: 5°C~45°C (41°F ~ 113°F) Power: DC 12V / 5A Power consumption: Max. 40W Typical 30W Approval: KC, FCC, CE, RoHS *Above specifications and design subject to change without notification
