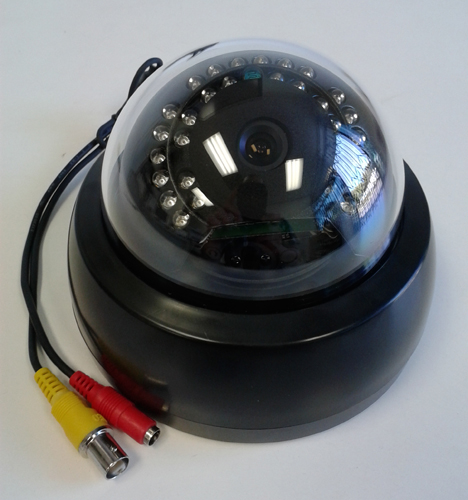

Indoor IR Dome Camera with 700 TV Lines
- 700 TV Lines
- Indoor
- Built-In IR-LEDs
- 3 Axis Gimbal Bracket
- OSD Control
- Video Test Output
Total Pixels: 1020(H) x 508(V), NTSC
Effective Pixels: 976(H) x 494(V), NTSC
Image Sensor: 1/3" high resolution CCD
Scanning System: 2:1 interlace
Frequency (NTSC): Horizontal 15.734KHz | Vertical 59.94
Image Resolution: 700 TV lines in color, 750 TV lines in B&W
Video Output: 1.0Vp-p composite signal (75Ω)
AGC: Off, low, middle, high
S/N (Y signal): 52dB or more (AGC off)
Minimum Illumination: 0 lux for infrared lightning conditions
White Balance: ATW1, ATW2, AWC-set, anti CRL, manual
Electronic Shutter Speed (NTSC): 1/60 ~ 1/100,000s
2D-DNR: On(0~15) / off selectable
Day & Night Selection: auto, color, BW, EXT
BLC: Off, BLC, HLC
D-WDR: On(0~63), off selectable
DPC: yes
IR SMART: On, off selectable (IR gain level 0~255)
Motion Detection: Off, on (area 1~4)
Privacy Masking: Off, on (mask 1~8)
Mirror: On, off
Lens Shading (LSC): On, off (level 0~255)
Sharpness: On, off (level 0~31)
Multi Language: Up to 8
OSD: yes
Lens: 3.6mm fixed board lens
IR LEDs: 30 IR LEDs
Operation Temperature, Humidity: -10°C to +50°C, 0~80% RH
Power Supply: DC 12V 80mA (CDS on: 450mA Max)
Dimensions: 135Ø x 97H mm
*Above specifications and appearance of the product subject to change without notification
