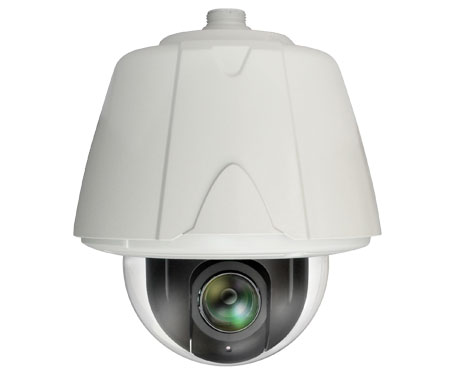

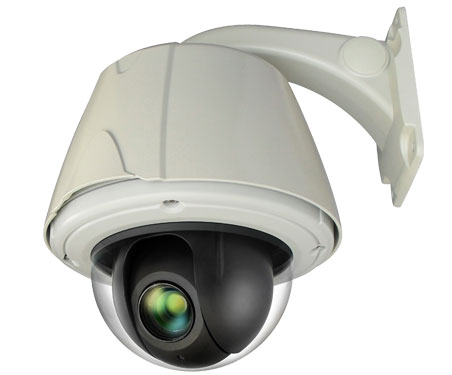

2 Megapixel PTZ Dome IP Camera
- 1/3” PS-Panasonic CMOS
- 2.2 Megapixel, Dual Encoding (H.264 / MJPEG)
- Optical 20x Zoom (4.45~89mm), Auto Iris, D&N with ICR
- High Performance Streaming Engine (Max. 30fps live view@1920×1080)
- Noise Reduction, Low up to 0.0001 Lux with DSS
- Motion Detection, Privacy Masking(8), Digital Zoom(8x)
- Audio (1 Input/1 Output), Alarm (4 Input/1 Output)
- Preset(32), Group(8), Trace, IP(66)
- Dehumidification (Fan & Heater operate for 10 minutes on command)
Camera
Image sensor: 1/3” 2Mega Panasonic CMOS
Scan mode: Progressive Scan
Number of active pixels: 1944(H) × 1092 (V) = 2,122,848 (pixel)
Total number of pixels: 2010(H) × 1108 (V) = 2,227,080 (pixel)
Minimum illumination:: Color:1.5Lux@F1.6(50IRE), 0.02Lux (Sens-up 60X)
B/W: 0.1Lux@F1.6(50IRE), 0.0001Lux (Sens-up 60x)
Lens: 4.45~89mm(20x), Digital Zoom(8x)
Angle of View:: H:56.56°(Wide)~3.10°(Tele)
V:43.32°(Wide)~2.34°(Tele)
Luminance S/N ratio: More than 50dB
Day & Night: Color / Auto / BW
Back Light: Off / HLC / BLC / WDR
Focus Control: Auto / Manual / Oneshot
Stabilizer: On /Off
White Balance: ATW/ AWC/ Manual/ Indoor/ Outdoor
Digital Noise Reduction: Off/Low/Middle/High(3D+2D)
Motion / Pircacy Zones: 1 / 8
Auto Flip / Mirror: Off / On
Dehumidification: Available
Alarm: 4 Input / 1 Output(Preset), 1 Input(Recording)
Pan & Tilt Angle: 360° Endless / 92°
Remote Control: RS-485
Operating temp.: - 40° C to 50°C
Weight: About 2.2kg
DimensionL 261.8(W) x 324.6(H)mm
Power Supply: AC 24V
Power Consumption: Max. 36W (Using Fan & Heater)
Network
Hardware:: Flash: 32MB flash
RAM: 256MB
Ethernet: RJ-45(10/100BASE-T)
Video Output:: Channel: 1ch (CVBS)
Compression: H.264 & MJPEG Dual Codec
Resolution: FULL HD(1920X1080), HD(1280X720P), VGA(640X480) ,QVGA(320X240)
Max. Frame rate: 30/25 fps
Bitrate control : CBR or VBR(64K~12Mbps)
Audio: 1 Audio In, 1 Audio Out, 8 bit PCM (G711 u-law) 8Khz, Mono
Memory Slot: SD/SDHC Memory Slot
Event:: Alarm / Motion Detection : E-mail, FTP
Event Output : Notification Service
Recording: Manual / Schedule / motion Detection / Sensor Event
Client Viewer: Web viewer, CMS, Max-i
Network Protocol: HTTP, TCP/IP, UDP, ARP, ICMP, RTP/RTSP/ DHCP, Telnet, FTP, ,NTP, DDNS, SMTP, UPNP, PPPoE, Onvif, PSIA
*Above specifications and design subject to change without notification
