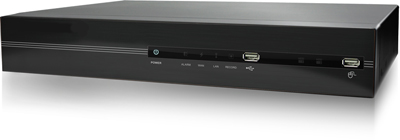

6 Channel NVR
HDMI Output, 1080P Video Output, Up to 180 FPS Recording in 720P
This NVR is suitable for introducing high-definition IP surveillance solution, and it’s also the best product if you simply want to upgrade your CCTV system to IP system without re-cabling. The existing CCTV cabling could be used for IP system upgrade.
This NVR could be used as a control center to control and monitor up to 6 network cameras (ONVIF supported) connected to this NVR locally or remotely, and also get the ability of image storage for evidentiary recording and data backup. To have the best monitoring and recording images, this NVR supports full HD image display and real-time record per channel.
To be able to see what you care at anytime, from anywhere, connect this NVR itself to Internet, and you’ll be able to see up to six network camera images at a time, from commonly-used web browsers on Windows and MAC OS, or from the mobile app, EagleEyes, on your mobile phone or tablet.
Specifications
▼ Video
Video Compression Format: H.264 / MPEG4 / MJPEG
Video Input: One LAN port, Up to 6 Channels with a 6-port hub
Video Output (Full HD): HDMI
Video Output Resolution: 1920 x 1080
▼ Record & Backup
Recording Throughput::
50Hz IP Camera: Up to 150 @ 720P, 32 Mbps
60Hz IP Camera: Up to 180 @ 720P, 32 Mbps
Recording Mode: Manual / Event / Alarm / Schedule
Pre-alarm Recording: YES
Quick Search: Time / Motion / Alarm
Backup Device: USB flash drive
▼ Audio
Output: YES (Line Out / HDMI)
▼ General
Hard Disk Storage: Up to two 3TB HDDs (not included)
SATA Interface: YES
USB Mouse Control: YES
IR Remote Control: YES
Key Lock (Password Protection): YES
User Level: Multiple user access levels with password
Operating Temperature: 10℃ ~ 40℃ (50℉~104℉)
Power Source (±10%): DC 19V / 2.1A
Dimensions (mm): 370(W) × 55(H) × 264(D)
▼ Network
Ethernet: LAN port: 1000Mbps
Inernet port: 10Mbps / 100Mbps
▼ PC Surveillance
Compatible Operating System: Windows 7, Vista & XP
Compatible Program: Video Viewer for Windows operating system
Minimum PC Browsing Requirements:
Pentium 4 CPU 1.3 GHz or higher, or equivalent AMD
256 MB RAM
AGP graphics card, Direct Draw, 32MB RAM
Windows 7, Vista & XP, DirectX 9.0 or later
Internet Explorer 7.x or later
▼ Mobile Surveillance
Compatible Devices: EagleEyes on iPhone, iPad & Android mobile devices
*Above specifications and design subject to change without notification
