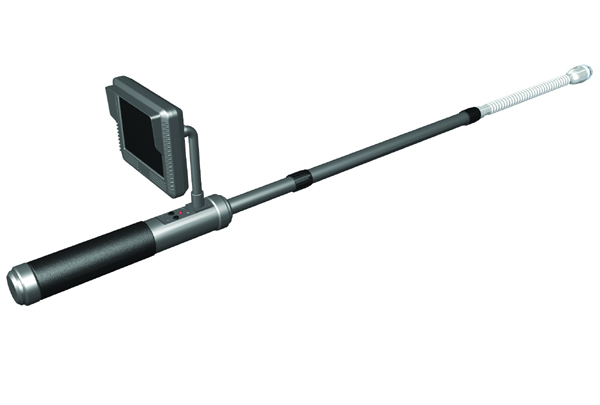

IC-9D
Inspection Camera, 9ft Long, 4" LCD Display



  • 1/3" Sony super HAD CCD
  • 520 TV Lines
  • 8 pieces of white LED (3mm diameter)
  • 3.6mm board lens
  • The camera is housed in waterproof, stainless steel housing
  • High capacity Lithium battery, 3.7V/2200mAh, supports up to 4 hours
  • Displays on 4" TFT LCD screen
  • 5 pieces of 24 inch aluminium extension pipes included.
  • The maximum extended length is 9 ft.
    •

    Download Specs
    _________________________________________________________

    Specification

  • Camera
    •
    • Image Sensor: 1/3" Sony CCD
    • Effective pixels (H X V): [PAL] 752 X 582, [NTSC] 768 X 494
    • Sync System: Internal Synchronization
    • Resolution: 520TVL
    • Built-in Lens: 3.6mm board lens
    • IR LEDs: High Output White LED, 8 Pcs(3mm diameter)
    • Housing: Stainless steel, waterproof
    • AGC: Auto
    • Back Light Compensation: Auto
    • S/N Ratio: more than 46dB
    • Electronic Shutter: Auto (PAL: 1/50-1/100,000sec, NTSC: 1/60-100,000sec)

  • LCD
    •
    • Display Size: 4 Inch TFT LCD
    • Resolution: 960(V) X 234(H)
    • Luminance: 220cd/ m2
    • Image Rotation: 180 degree

  • Battery
    •
    • Type: High Capacity chargeable Lithium Battery
    • Voltage: 3.7V X 2
    • Capacity: 2200mAh

  • Environment
    •
    • Operation Temperature: -10~50C
    • Storage Temperature: -20~70C
    • Power: 4.5W
    • Maximum Length: 9ft
    • Package Dimension: 21.2 x 8.8 x 5.2 inch
    • Included: carrying case, main grip wih monitor, extension pipe, flexible tube with camera, battery charger, and battery
